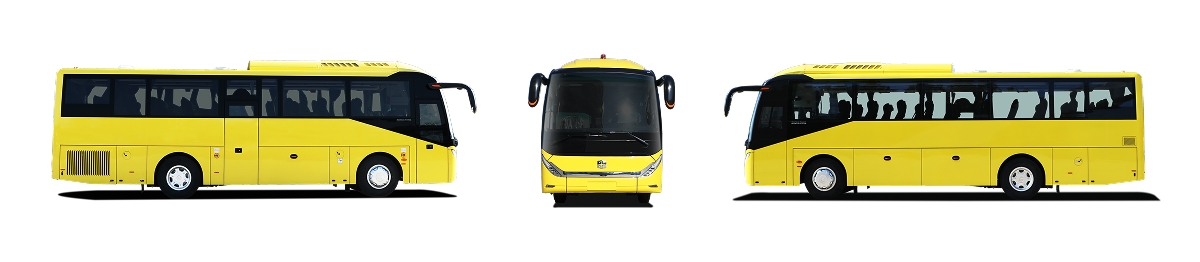

LCK6109HQ Group Bus
Features
- The H Series coach is suitable for medium- and long-distance tourism transport, scheduled passenger services, and intercity commuting.
- Features a low-drag aerodynamic exterior design that combines modern industrial aesthetics with functional design to reduce driving resistance.

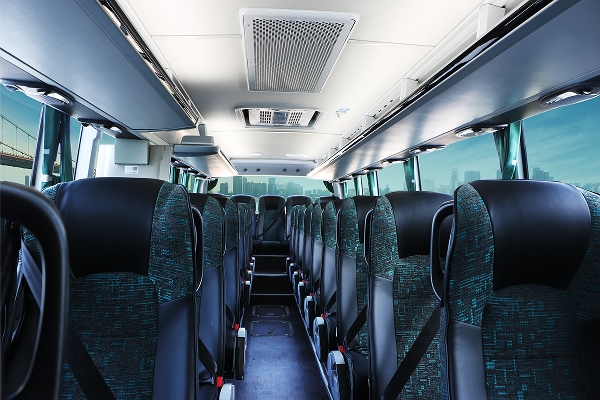

- Optimized seating layout maximizes space utilization, while the healthy cabin design provides an ergonomic and comfortable long-distance travel experience for passengers.
- Optimized powertrain matching and vehicle weight reduction help lower energy consumption and operating costs.
- A maintenance-friendly design simplifies inspections and component maintenance, reducing downtime and improving fleet efficiency.
| L*W*H (mm) | 10150*2550*3430 |
| Engine | Weichai WP7H270 |
| Emission standard | Euro V |
| Transmission | Fast gear 6-speed manual transmission |
| Gross weight (kg) | 15000 |
| Front/Rear suspension (mm) | 2150/3140 |
| Wheelbase (mm) | 4860 |
| Structure | Full monocoque structure |
| Max. Speed (km/h) | 100 |
| Suspension | Air suspension |
| Axle (T) | Front axle 5.5, Rear axle 9.5 |
| Capacity (seats) | 41+1+1 |
| Max. Power (kW) | 199 |
| Brake | Front disc brakes / Rear disc brakes |
Details
